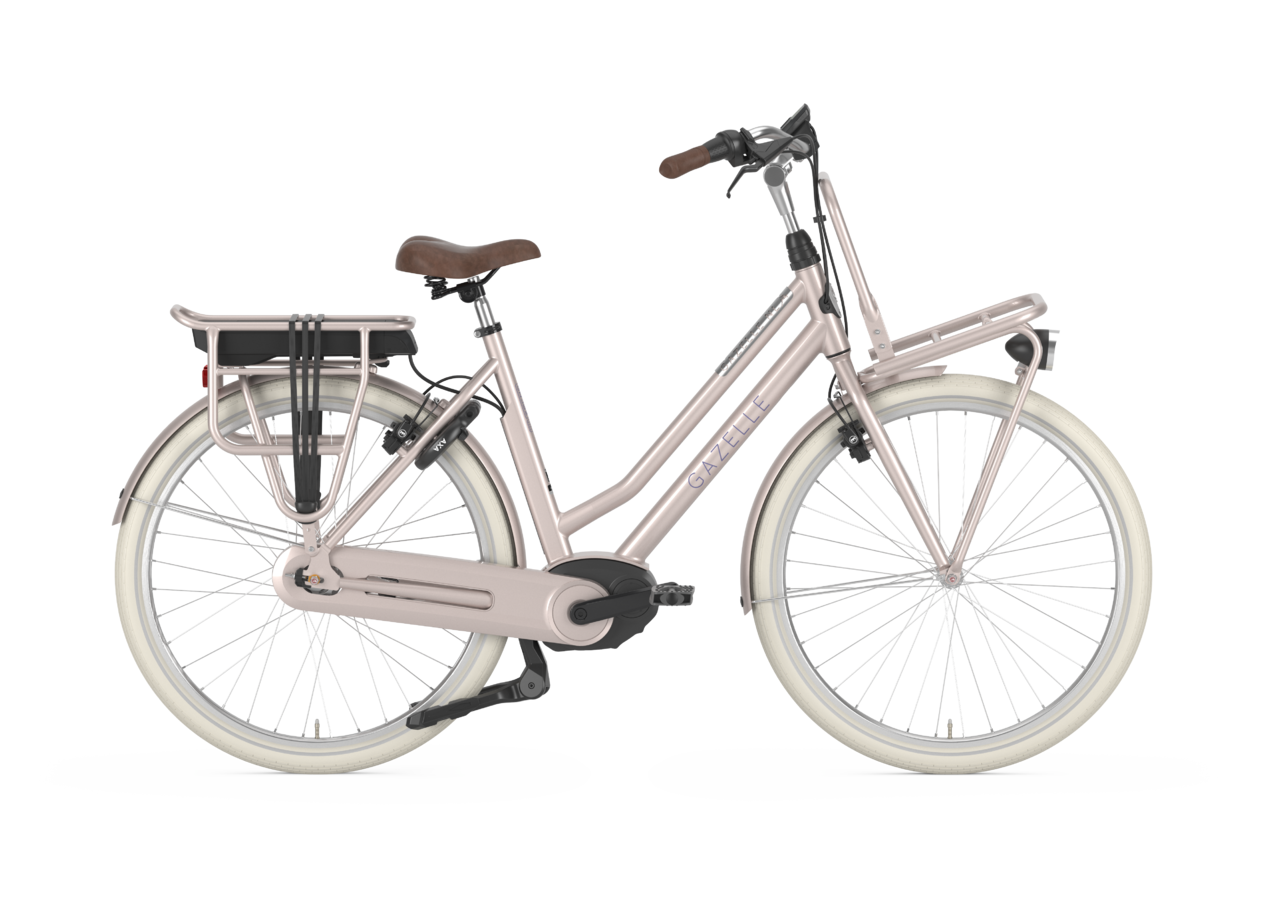

Comfort geometry
Balanced geometry and a lightweight over sized aluminum frame with a low center of gravity provide stability and control when loaded with cargo.Strong Locks
Strong locks AXA ring lock offers high-quality optimum protection with an innovative design featuring an anti-drill cylinder and hardened steel bracket.Robust Frame
Robust, heavy duty front and rear utility racks allow the Gazelle NL to carry just about anything you can think of.Specifications
| Range | Up to 55 miles range |
| Motor | Bosch Performance Line |
| Battery | 36V 13.4AH |
| Front Light | DH007Plus, 48V, 70Lux |
| Display | Bosch Intuvia |
| Charger | Bosch 4A Standard Charger |
| Brakes | Magura HS22 Hydraulic Rim Brakes, Four Finger Levers with Tool-Free Adjustable Reach |
| Riding Mode | 4 Levels Of Pedal Assist. |
| Tires | CST Metropolitan Palmbay, 700 x 48c (28" x 2.0") |
| Controller | Bosch |
| Fork | Rigid Alloy, 100 mm Hub Spacing, 9.5 mm Threaded Axle with Nuts |
| Saddle | Stromer Branded Ergon SMC40 (Ultra Thin Y-Flex Construction) |
| Stem | Custom, Alloy and Plastic, Internal Circuit Board, Internal Cable Routing, 7° Rise, 110 mm Length, No Handlebar Clamp |
| Frame | 6061 Aluminium 17", 20", or 22" |
| Wheels | 28 in (71.12cm) |
| Gears | 8 Speed 1x8 Shimano Nexus Inter8, Internally Geared Hub, 318% Range, 18 Tooth Cog |
| Crank | Miranda Delta, Alloy, 170 mm Length, 15 Tooth Chainring |
| Seat Post | Aluminum Alloy, 25.4 mm Clamp Diameter |
| Grips | Gazelle Aeroswing Vario Comfort, Rubberized Ergonomic, Brown or Black, Locking |
| Kickstand | Massload Two-Leg Center Kickstand |
| Pedals | Gazelle Linea Plastic Platform with Rubber Tread |
| Included Accessories | Curana C-Lite Color Matched Plastic and Alloy Fenders, Oversized Alloy Rear Rack with Pannier Hangers (25 kg 55 Max Load), Oversized Front Rack (10 kg 22 lb Max Load), AXA Defender Cafe Lock (Keyed-Alike to Battery Lock), Enclosed Plastic Chain Cover, Int |
| Weight | 62.8 lbs |
| Max Load (rider+bike) | 140KG (308.6lbs) |
| Battery Weight | 4.8KG (10 lbs) |
** this bike has 111 miles on the odometer **
