Discover the Gazelle Ultimate C380+ HMB
Check out the ElectricBikeReview.com's review of the Gazelle Ultimate C380+, they had a great experience with it.
The Bosch battery in this application can give a maximum range of ~75 miles. For more accurate estimates, visit the Bosch Range Calculator.
The Gazelle Ultimate C8 qualifies for a $600 Austin Energy Rebate.
Ride easier knowing that with a Bosch powered eBike, sustainability is better achieved for a better future.
The Gazelle Ultimate C380+ HMB is the ultimate electric bike to take on any task, errand, or adventure. Equal parts sporty urban bike and comfortable touring bike, and powered by Bosch’s formidable Performance Line Speed motor, this Gazelle goes the distance. The exquisitely-formed frame, elegant lines, and integrated battery offer a sleek look and capable handling. Specced with the Enviolo 380 trekking internal gear hub, stepless shifting creates an easy riding experience in any conditions. The Gates belt drive is whisper-quiet and multiple comfort features ensure an exceptional ride-feel.
• Powerful assistance thanks to a Bosch Performance Line Speed motor with 85Nm of torque (28mph) and 500Wh integrated battery
• Premium Shimano Deore disc brakes for smooth and responsive braking
• Enviolo 380 trekking hub provides effortless and stepless shifting
• Comfort, design, and performance combined in a single sporty bike
Manufacturer Information for Gazelle Ultimate C380+:
Since 1892, Royal Dutch Gazelle has been making the finest quality bicycles with smooth ride, clever design and robust quality. Gazelle bikes, and now Gazelle electric bikes are made in The Netherlands and are a symbol of the classic Dutch style. As the bicycle market leader in The Netherlands, Gazelle has led the way in innovations that make cycling more enjoyable.
Gazelle electric bikes make cycling practical and awesome! Like its light and powerful namesake, Gazelle e-bikes help you dash off to the shops, arrive at work relaxed or whiz up a hill with power to spare. The powerful Bosch Performance Line motor enables you to ride through hilly terrain with ease. Its dynamic drive impresses with high-performance support: from flat to steep, from asphalt to trail. The large battery capacity gives riders a range of over 80 miles on one charge, while the use of high-grade components gives you the assurance of the best quality.
Check out all available Gazelle bikes for sale here.
There's also the low-step, class 1 version of the C380+
Specifications of Gazelle Ultimate C380+ HMB
Highlights
- Frame shape: mid-step and high-step
- Size: 46(mid), 53 (mid and high), 57 (mid and high)
- Engine model: Bosch Performance Line Speed 4.0 (85 Nm)
- Brake system short description: hydraulic brakes, 4 piston
- Gears: Stepless Enviolo 380 trekking internal gear hub
- Fork suspension type: Suntour Mobie 45 with 80mm of travel
DESCRIPTION: Enviolo 380 Trekking with Shimano BR-MT420 hydraulic disc brakes
KG: 25,2 (excl. battery) LBS 55.56 (excl. battery)
HIGH-STEP M(53) | L(57)
COLOR industry grey matte
MID-STEP S(46) | M(53) | L(57)
>>>Dual battery kit available for all high-step frames
E-Bike
- E-bike system: Bosch
- Motor location: mid
- Battery type: Li-ion
- Motor assistance level: 28 mph
- Battery position: integrated into frame
- Battery replaceable: Yes
- Amount of support levels: 4
- Walk assist: Yes
- Engine model: Bosch Performance Line Speed 4.0 (85 Nm)
- Motor capacity: 85Nm
- Battery system: Bosch
- Display Model: Bosch Purion LCD
- Ebike sensors: rotation sensor, speed sensor, pedal force sensor
FRAME/FRONT FORK

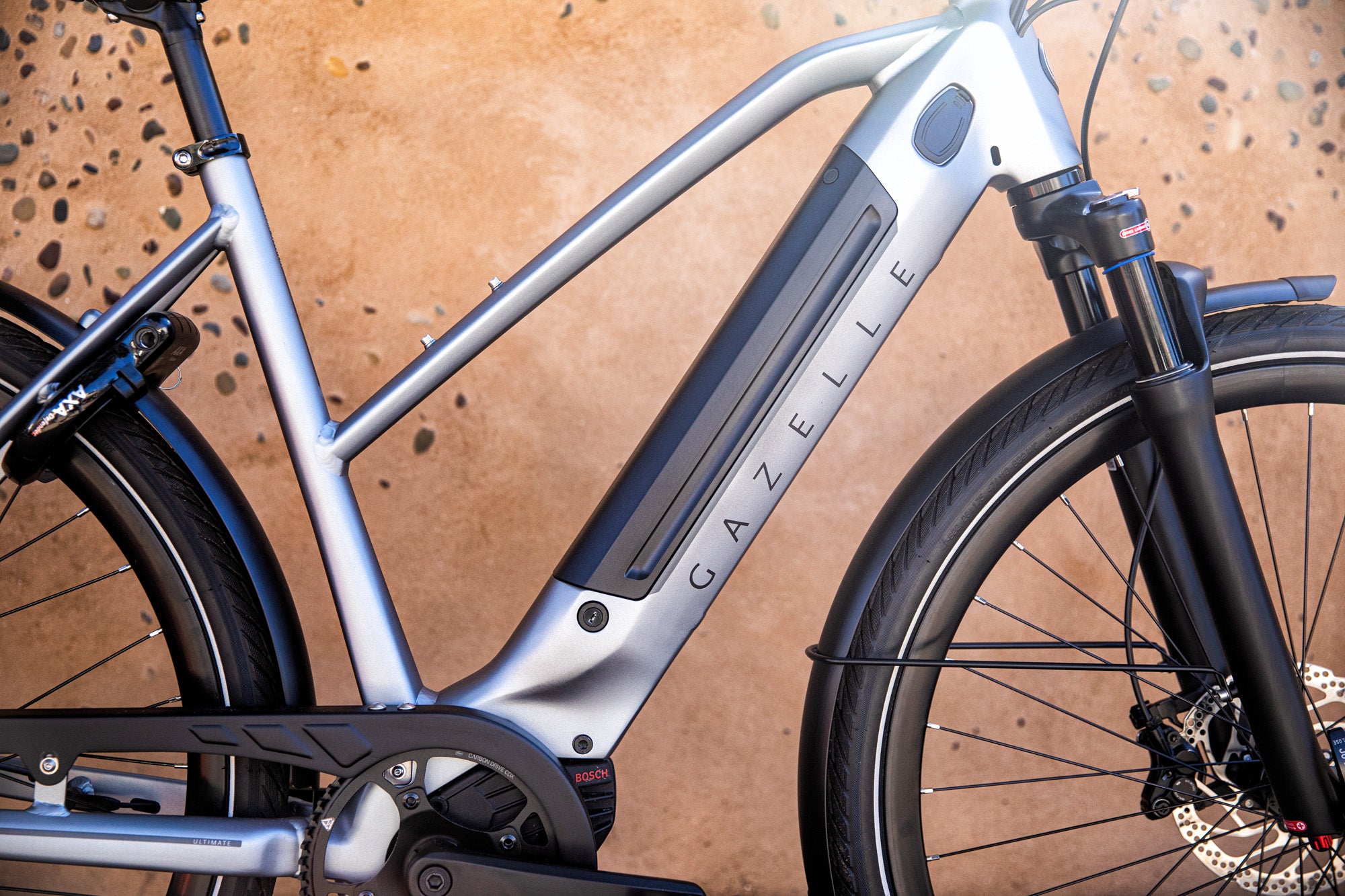

• Frame: Stable aluminum frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
• Sitting position: Active
• Integrated cables: Yes

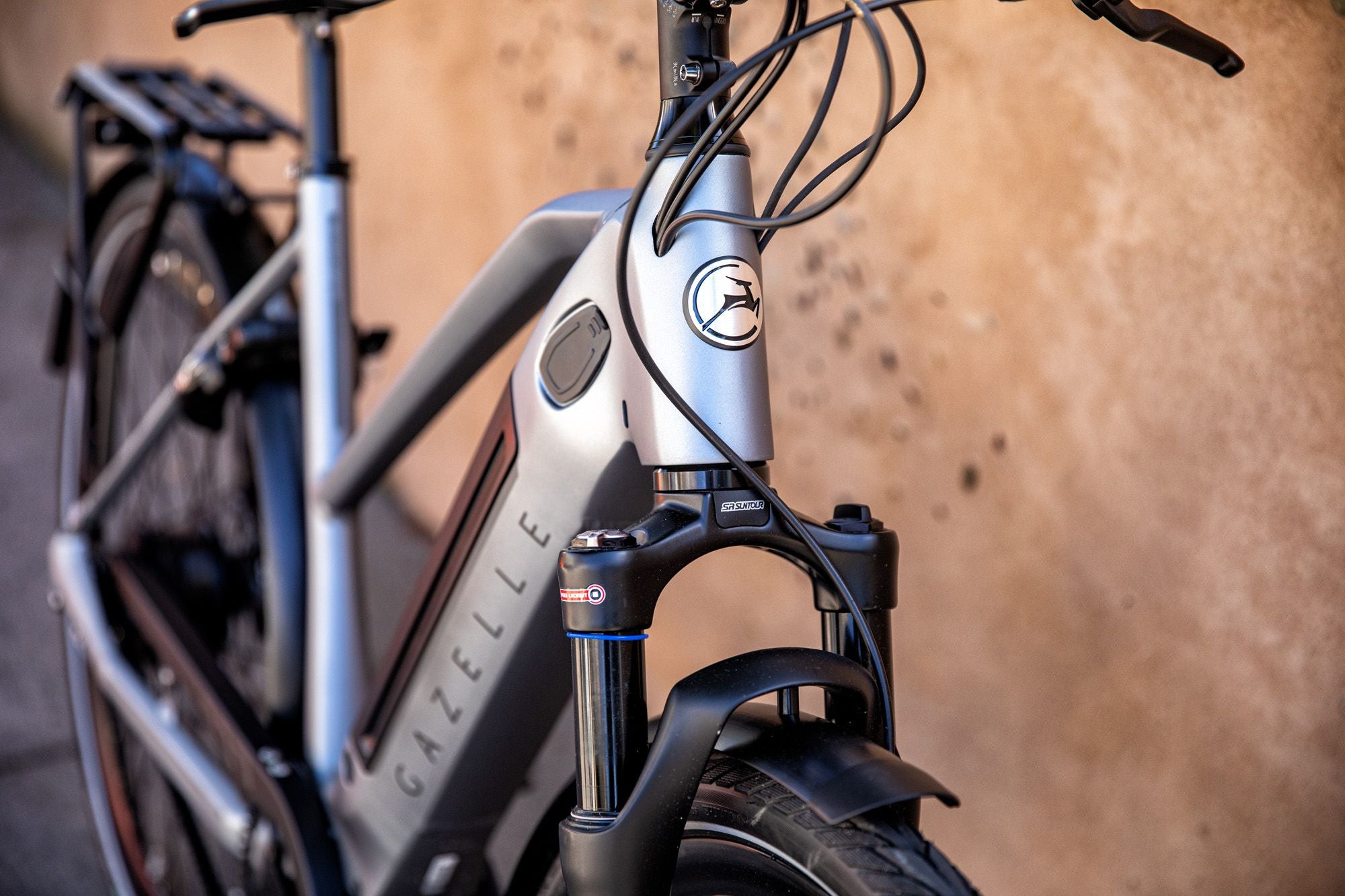

• Fork: Suntour Mobie 45
• Travel fork: 80 mm
• Chain guard: Aluminum
• Rear carrier: Gazelle commuter, aluminum
WHEELS/TIRES
• Tires: Schwalbe Energizer Plus, 47-622
• Tires puncture resistant: Yes
• Rims: Ryde Dutch
• Spokes: Stainless steel, extra strong
• Fender: Aluminum
STEERING
• Handlebar: Aluminum, slightly curved model
• Stem: Steplessly adjustable
• Grip type: Ergon GP1-L, ergonomic
TRANSMISSION/BRAKE
• Front hub: Shimano
• Rear hub: Enviolo 380 Trekking Manual continuously variable gears, freewheel
• Shifter: Enviolo Trekking Controller
• Brake system back: Disc brake with hydraulic control; Shimano BR-MT420, 4 piston 160 mm
• Brake system front: disc brake with hydraulic control; Shimano BR-MT420, 4 piston 180 mm
• Crank: Miranda Delta
• Front chainwheel: 55
GAZELLE ULTIMATE C380+ HMB
• Rear chainwheel: 22
• Drivetrain: Belt

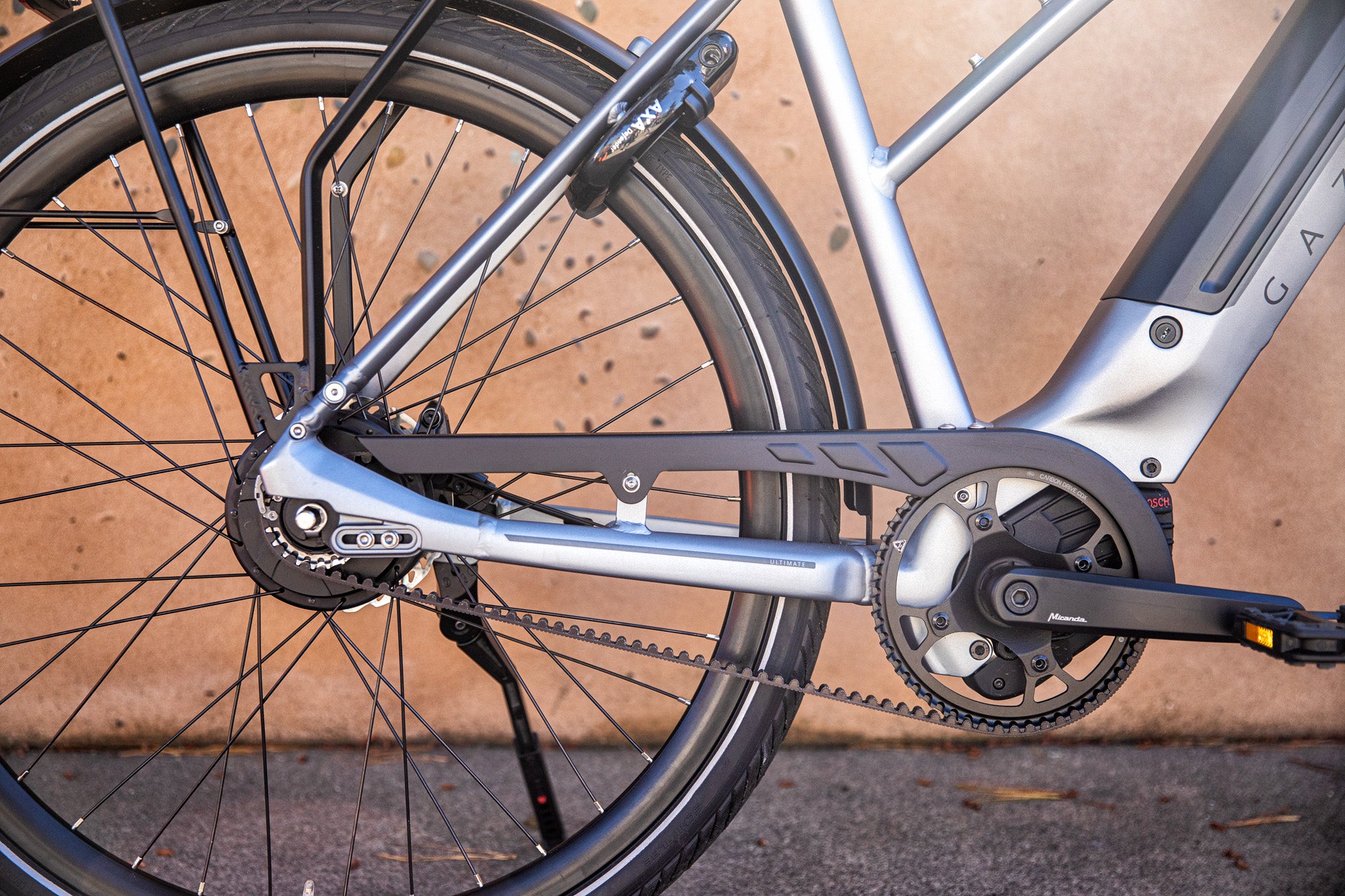

• Chain: Gates CDX belt drive, with Centertrack
SADDLE
• Seatpost: Fixed
• Saddle: Selle Royal Essenza Plus
LIGHTING
• Lights front: Axa Blue Line 50, LED headlamp, on/of switching
via display
• Front light lux: 50
• Front light powersource: Battery
• Light back: Herrmans H-Cargo, LED, battery supply, always on
• Rear light powersource: Battery
SYSTEM
• Display: Bosch Purion LCD
• Display detachable: No
• Controlled on handle: Yes
• Sensors: rotation sensor; speed sensor; pedal force sensor
• Engine: Bosch Performance Line Speed (85 Nm), 36V
• Battery: Mid-step: integrated into frame, High-step: integrated
into frame
• Charger: 4 Ah
• Battery: 500 Wh
OTHER
• Lock type: AXA Defender, Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
• Lock safety level: ART ** certified
• Kickstand: drop-down rear stand, Ursus Mooi
